TraX

CONVENIENT
  • Requires nothing be added to the blades (no tip targets)
  • Hands-free operation
  • No aiming required during flight
  • Fast measurement time (Approximately 4 seconds for 25 rotations)
  • Quick and easy mounting without hardware
ACCURATE
  • Reports track differences down to 0.1”
  • Reports lead/lag differences down to 0.1”
VERSATILE
  • The instrument provides tip path measurements without the use of tip targets or stroboscopic lights. If the aircraft has tip targets installed, you are not required to remove them in order to utilize the ACES TraX.
RUGGED
  • Key components of the ACES TraX include a rugged black ABS plastic body with an integrated cable and adjustable mount assembly with integral suction cup.
ADVANTAGES:
  • Hands-free operation
  • Requires no tip targets to the main rotor
  • No aiming required during flight
  • Fast measurements (~ 4 seconds per 25 rotations)
  • Simple mounting, no hardware

Contact Your Sales Rep

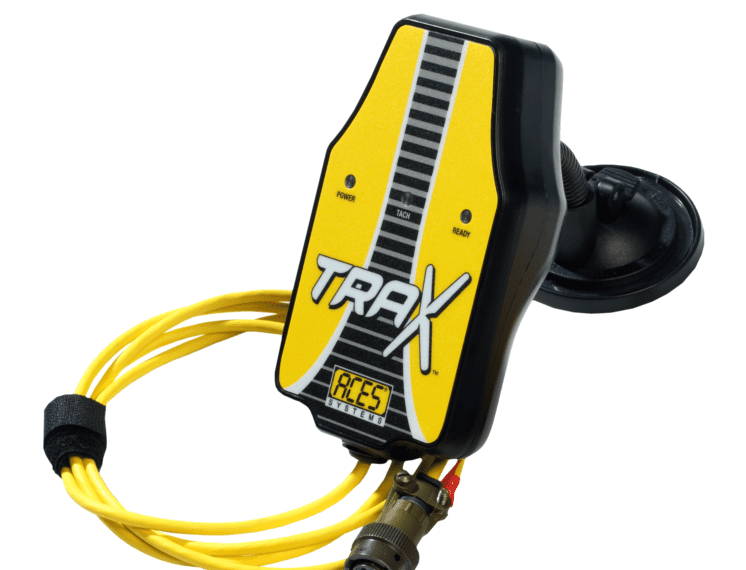

Trax Model 550

The ACES Systems TraX is a state-of-the-art, semi-permanently mounted optical camera that automates the task of obtaining accurate blade track data when used in conjunction with certain ACES Systems’ analyzers.
